Common Questions

How do I find my drum brake bearing number?

10″ Drum Brakes
(1600kg Single Axle / 3300kg Tandem Axle)

  • Ranger Bearing
  • Inner Bearing: L68149/10
  • Outer Bearing: L68149/10
  • Seal: 402903N

12″ Drum Brakes (2800kg Single Axle / 4400kg Tandem Axle)

      • Ranger Bearing
      • Inner Bearing: 25580/20
      • Outer Bearing: 15123/245
      • Seal: 48.5 × 85.62 × 9.53



12″ Drum Brakes (3000kg Single Axle)

  • Ranger Service Kit: TSBK12DRU Kit
  • Bearing: ZA-42KWD10U42CA-01LB RA1S5
  • Circlip: AU3912
  • Grease Cap: AU1901
  • Stake Nut: AU2902

12″ Disc Brakes (2800kg Single Axle / 4400kg Tandem Axle)

  • Replacement Bearing Kit: TSBK12DIJ KIT
  • Inner Bearing: 25580/20
  • Outer Bearing: 15123/245
  • Seal: 82130



  • 12″ Disc Brakes (3000kg Single Axle)

    • Service Kit: UNI-SK3T
    • Bearing: HU3902-82 OD x 40 W x 42 ID
    • Circlip: AU3912
    • Grease Cap: AU1901
    • Stake Nut: AU2902

As a general rule:

  • Tandem Axle:
    50–80 PSI (Maximum: 100 PSI)
  • Single Axle:
    70–100 PSI (Maximum: 130 PSI)

The airbag height should measure 250mm ± 25mm, taken from the top to the bottom of the airbag.

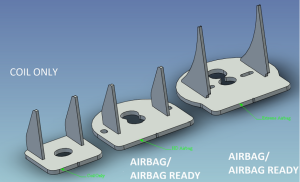

How to Identify Airbag-Ready Suspension?


To identify whether your suspension is airbag compatible, inspect the top coil plate mounted on your chassis.

  • A square-shaped plate confirms a coil-only setup.
  • A rounded extension towards the shock absorbers indicates the system is airbag ready.

Key Checks for Better Stability

Make sure the following are properly set on your caravan:

  • Towball Weight:
    Ensure it is within the recommended specifications
  • Chassis Level:
    Caravan should sit level to the ground
  • Shock Absorber Bolts:
    Tightened correctly to 75 Nm
  • Wheel Alignment:
    Must be within proper specification
  • Tyre Pressure:
    Maintain correct and even tyre pressure
  • Ride Height (Airbag Systems):
    Ensure correct airbag height is maintained

General Recommendation

It is recommended to service your caravan at least once every 12 months or every 10,000–15,000 km, whichever comes first.

RANGER-X Suspension is backed by a 2-year (24-month) warranty, covering all parts and workmanship.

Register Suspension

How do I find my drum brake bearing number?

10″ Drum Brakes (1600kg Single Axle / 3300kg Tandem Axle)

  • Ranger Bearing
  • Inner Bearing: L68149/10
  • Outer Bearing: L68149/10
  • Seal: 402903
    •

12″ Drum Brakes (2800kg Single Axle / 4400kg Tandem Axle)

  • Ranger Bearing
  • Inner Bearing: 25580/20
  • Outer Bearing: 15123/245
  • Seal: 48.5 × 85.62 × 9.53



12″ Drum Brakes (3000kg Single Axle)

  • Ranger Service Kit: TSBK12DRU Kit
  • Bearing: ZA-42KWD10U42CA-01LB RA1S5
  • Circlip: AU3912
  • Grease Cap: AU1901
  • Stake Nut: AU2902
